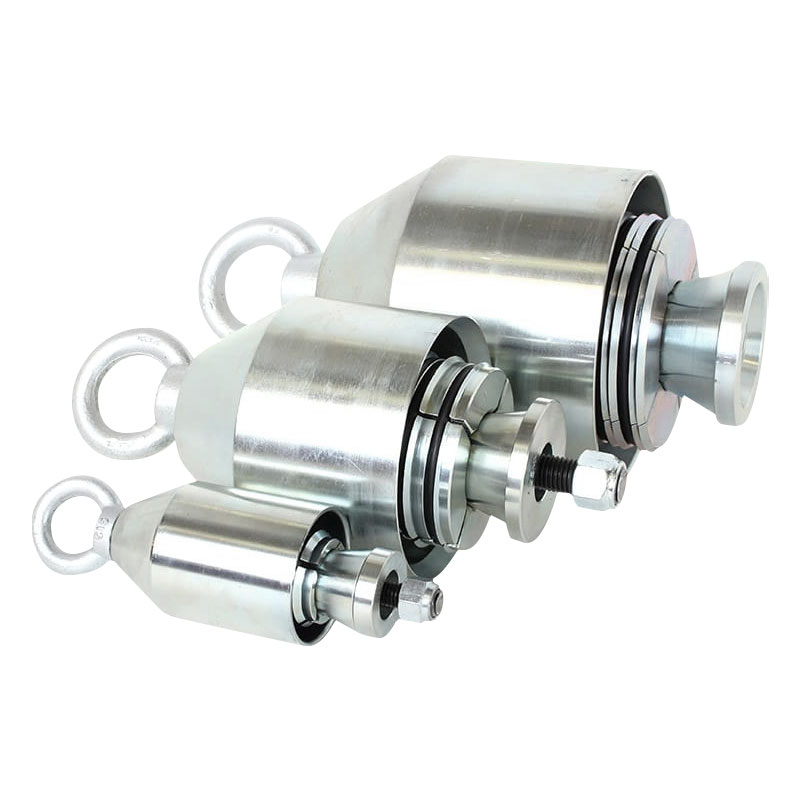

Mud Tight Pipe Towing Heads


Description

The newly developed Mud Tight Pipe Towing Heads have been designed specifically for use in directional drilling, and prevent the ingress of drilling fluids into the pipe.

Manufactured from quality materials and based on a well proven design, the Towing Heads incorporate several additional features which make them a unique product, including a rubber seal which is housed within the Nose Cone / Outer Sleeve assembly. This seal, which bears against the end of the pipe, is manufactured from a rubber compound that ensures a good positive seal, whilst being resistant to damage.

Features

  • Pipe range 32-180mm Ø
  • Expanding action covers most SDR pipe ratings
  • Strain tested towing eyebolts
  • Prevents fluid ingress
  • Fully reusable
  • High quality robust construction
Pipe Size Range32-180mm Ø
Other sizes available upon request.
CodeDescriptionQTYReview Quote
04-73-05632mm Ø SDR11/17
Add to quoteAdding...
04-73-06440mm Ø SDR11/17
Add to quoteAdding...
04-73-06563mm Ø SDR11/17
Add to quoteAdding...
04-73-05790mm Ø SDR11/17
Add to quoteAdding...
04-73-058110mm Ø SDR11/17
Add to quoteAdding...
04-73-059125mm Ø SDR11/17
Add to quoteAdding...
04-73-062180mm Ø SDR11/17
Add to quoteAdding...
  • Towing Head Cable Connection Aids
