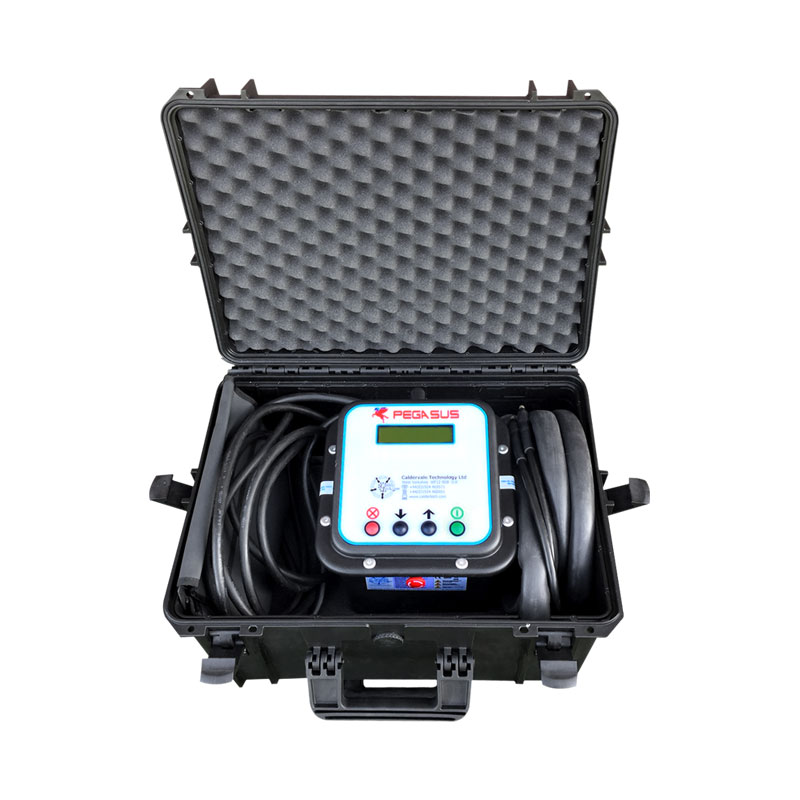

Calder Pegasus™ HC EF Welder


Description

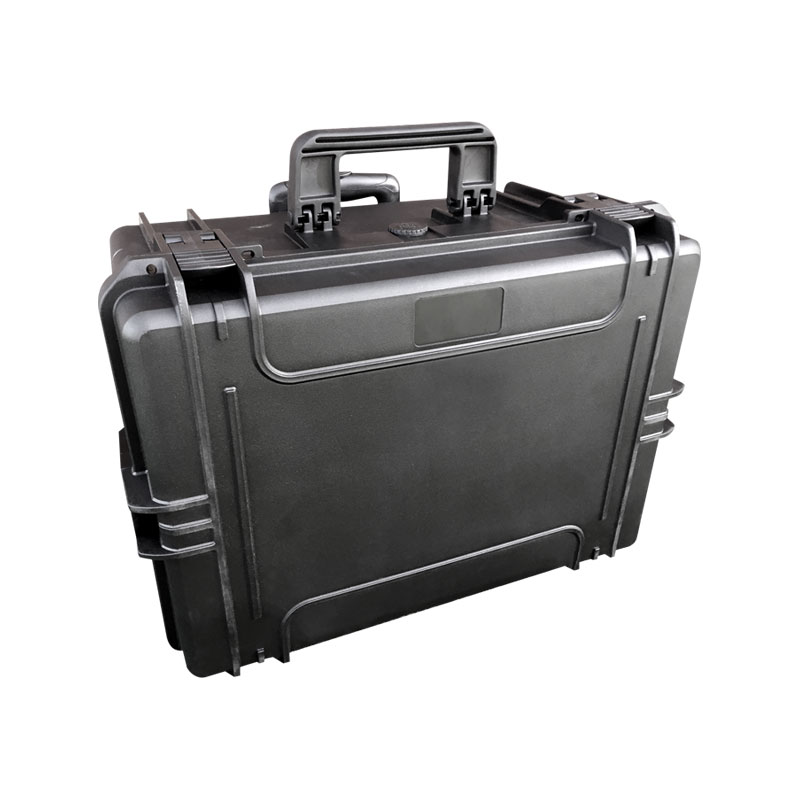

The Calder Pegasus HC gives you functionality, reliability and affordability, capable of welding all conventional brands of fittings up to 1000mm. Featuring a protective hard case, automatic fitting recognition, barcode scanning and manual data entry options, this welder is built to last.

Features

  • Barcode scanning and manual time entry
  • Fitting size range 20-1000mm Ø
  • 4m output lead
  • Choice of terminal sizes
  • Data recording of 2,000 welds
  • CalderSafe® Weld Data Analyser
  • Simple symbolic display
  • Terminal adapters supplied

Optional

  • Automatic coupling recognition Fusamatic / Plasson
  • Control Point – Blue Box Data Technology
  • Double insulation
  • CalderSafe® Mobile Weld Analyser
  • Dual sized output terminals
Coupling Size Range20-1000mm Ø
Dimensions [HxWxL]550 x 420 x 340mm
Weight28kg
Case MaterialABS Plastic
Mains Input Cable Length10m
Fusion Output Cable Length4m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current30A (110v) / 16A (230v)
Input Power3.3kVA (110v) / 2.8kVA (230v)
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP55
Data Recording Capacity2000 Records
CodeDescriptionQTYReview Quote
01-01-450110v Pegasus HC, with barcode scanner and protective hard case
Add to quoteAdding...
01-01-451230v Pegasus HC, with barcode scanner and protective hard case
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
