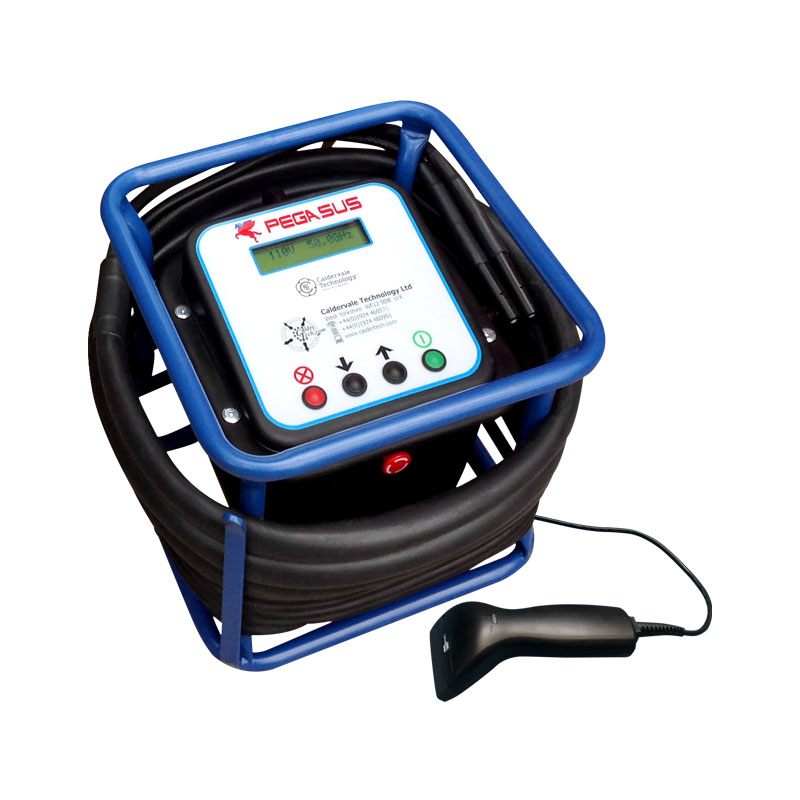

Calder Pegasus™ EF Welder


The Calder Pegasus gives you functionality, reliability and affordability, capable of welding all conventional brands of fittings up to 1000mm. With automatic fitting recognition, barcode scanning and manual data entry options, this welder is an industry standard.


  • • Barcode scanning and manual time entry
  • Fitting size range 20-1000mm Ø
  • 4m output lead, choice of terminal sizes
  • Data recording of 2,000 welds
  • CalderSafe® Weld Data Analyser
  • Simple symbolic display
  • Terminal adapters supplied


  • Automatic coupling recognition
  • Control Point – Blue Box Data Technology
  • Double insulation
  • CalderSafe® Mobile Weld Analyser
  • Dual sized output terminals
Coupling Size Range20-1000mm Ø
Dimensions [HxWxL]320 x 340 x 340mm
Case MaterialABS Plastic
Mains Input Cable Length10m
Fusion Output Cable Length4m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current30A (110v) / 16A (230v)
Input Power3.3kVA (110v) / 2.8kVA (230v)
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP54
Data Recording Capacity2000 Records
CodeDescriptionQTYReview Quote
01-01-401110v Pegasus, with barcode scanner
Add to quoteAdding...
01-01-402230v Pegasus, with barcode scanner
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
01-01-162Steel case
Add to quoteAdding...
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
  • 01-01-403 : Steel case
