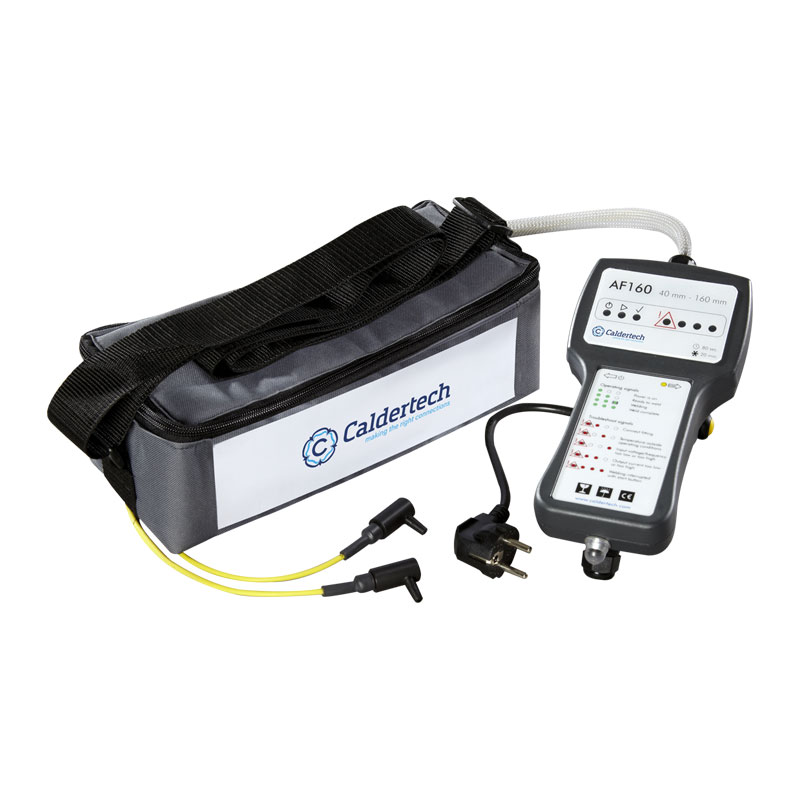

Calder Aquafuse AF160 EF Welder


The Aquafuse AF160 is a small size, easy to use hand held welder for all non-pressure drainage pipe applications. It provides reliable welding and is suitable for fittings manufactured by Akatherm, Valsir, Coes, Gerberit, Wavisolo and other manufacturers.


  • Hand held
  • Fitting size range 16-160mm Ø
  • Constant current secondary output
  • Soft touch case bag
  • Lightweight
  • Simple to use


* Not for use for conventional electrofusion fitting.

Coupling Size Range16-315mm Ø
Dimensions [HxWxL]270 x 245 x 175mm
Case MaterialABS Plastic
Mains Input Cable Length4m
Fusion Output Cable Length2m
Input Voltage230v
Power Consumption40-60Hz
Max. Input Current10A
Input Power2300W
Environmental ProtectionIP57
CodeDescriptionQTYReview Quote
01-01-096230v Calder Aquafuse AF160, with soft touch case bag
