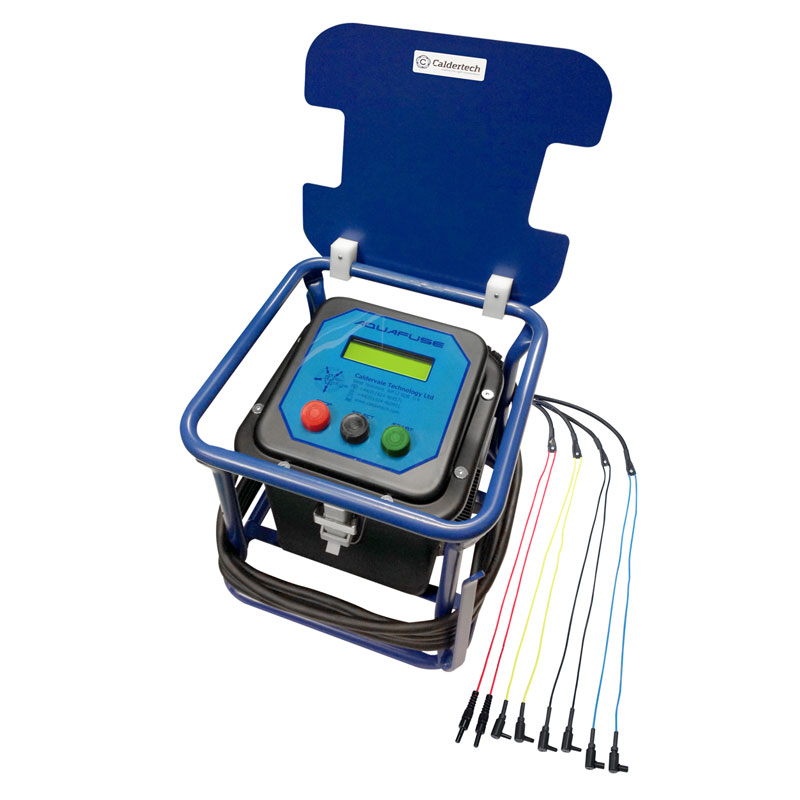

Calder Aquafuse AF315 110v EF Welder


The Aquafuse AF315 110v is a simple to use welder made for 110v primary power supplies and designed for all non-pressure drainage pipe applications. It provides reliable welding for HDPE fittings manufacturers including Akatherm, Valsir, Coes, Gerberit and Wavisolo.


  • Automatic recognition of fittings
  • Fitting size range 16-315mm Ø
  • Constant current secondary output
  • Colour coded output cables
  • High strength casing
  • Contains 110v to 230v transformer
  • Simple to use


* Not for use for conventional electrofusion fitting.

Coupling Size Range16-315mm Ø
Dimensions [HxWxL]270 x 245 x 175mm
Case MaterialABS Plastic
Mains Input Cable Length4m
Fusion Output Cable Length2m
Input Voltage110v
Power Consumption40-60Hz
Max. Input Current10A
Input Power2300W
Environmental ProtectionIP57
CodeDescriptionQTYReview Quote
01-01-042110v Calder Aquafuse AF315
Add to quoteAdding...
01-01-05540-160mm Ø connecting pigtail set (Black) for Waviduo
Add to quoteAdding...
01-01-056200-315mm Ø connecting pigtail set (Blue) for Akatherm, Eurofusion, Wavisolo
Add to quoteAdding...
01-01-05740-160mm Ø connecting pigtail set (Yellow) for Akatherm, Coes, Eurofusion, Gerberit
Add to quoteAdding...
01-01-058200-315mm Ø connecting pigtail set (Red) for Gerberit
Add to quoteAdding...
01-01-05940-160mm Ø output lead (Green) for Wavisolo
Add to quoteAdding...
01-01-162Steel case
Add to quoteAdding...
  • 01-01-403 : Steel case
