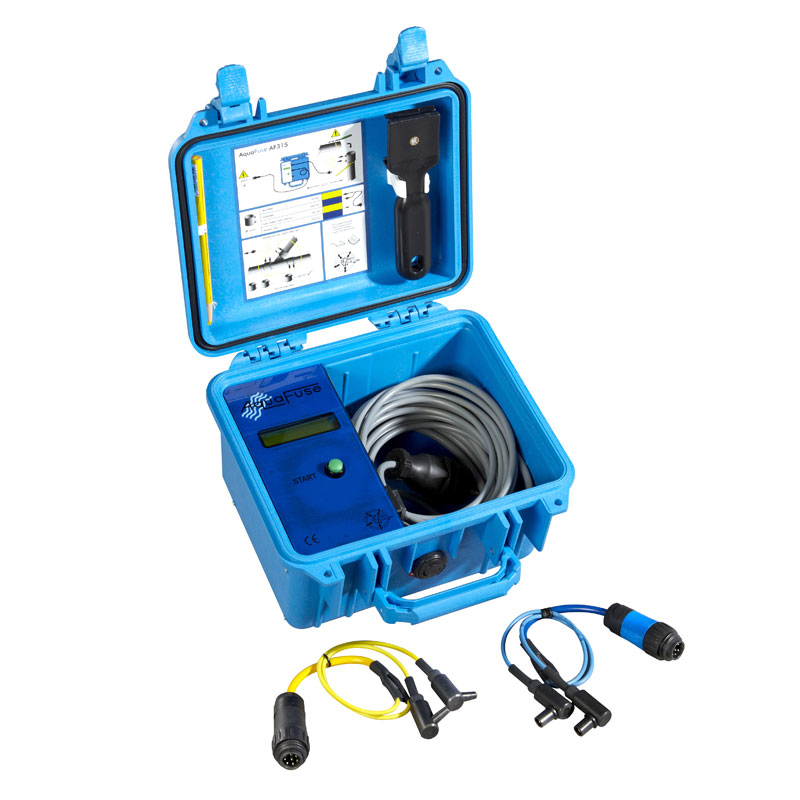

Calder Aquafuse AF315 EF Welder


Description

Caldertech’s Aquafuse AF315 is a simple to use welder for all non-pressure drainage pipe applications. It provides reliable welding for a range of HDPE fittings manufacturers including Akatherm, Valsir, Coes, Gerberit and Wavisolo.

Features

  • Automatic recognition of fittings
  • Fitting size range 16-315mm Ø
  • Constant current secondary output
  • Colour coded output cables
  • High strength casing
  • Lightweight
  • Simple to use



* Not for use for conventional electrofusion fitting.

Coupling Size Range16-315mm Ø
Dimensions [HxWxL]270 x 245 x 175mm
Weight4kg
Case MaterialABS Plastic
Mains Input Cable Length4m
Fusion Output Cable Length2m
Input Voltage230v
Power Consumption40-60Hz
Max. Input Current10A
Input Power2300W
Environmental ProtectionIP57
CodeDescriptionQTYReview Quote
01-01-098230v Calder Aquafuse AF315
Add to quoteAdding...
304.00.010140-160mm Ø connecting pigtail set (Yellow) for Akatherm, Coes, Gerberit, Valsir, Waviduo
Add to quoteAdding...
304.00.0102200-315mm Ø connecting pigtail set (Blue) for Akatherm, Wavisolo, Valsir
Add to quoteAdding...
304.00.0103200-315mm Ø connecting pigtail set (Red) for Gerberit
Add to quoteAdding...
304.00.0104200-315mm Ø connecting pigtail set (Green) for Von Roll
Add to quoteAdding...
304.00.0105200-315mm Ø connecting pigtail set (Black) for Coes
Add to quoteAdding...
304.00.0106Link lead for co-joining multiple couplers, max. total size 160mm Ø
Add to quoteAdding...
  • 304.00.0101 : 40-160mm Ø connecting pigtail set (Yellow) for Akatherm, Coes, Gerberit, Valsir, Waviduo
  • 304.00.0102 : 200-315mm Ø connecting pigtail set (Blue) for Akatherm, Wavisolo, Valsir
  • 304.00.0103 : 200-315mm Ø connecting pigtail set (Red) for Gerberit
  • 304.00.0104 : 200-315mm Ø connecting pigtail set (Green) for Von Roll
  • 304.00.0105 : 200-315mm Ø connecting pigtail set (Black) for Coes
  • 304.00.0106 : Link lead for co-joining multiple couplers, max. total size 160mm Ø
