Calder Griffon™ EF Welder


The Calder Griffon Lightweight electrofusion welder is capable of fusing all conventional brands of fittings up to 200mm. Using a high volume cooling fan, it provides reliability for welding in all conditions and offers CalderSafe® Weld Data Analyser and Bluetooth connectivity for CalderSafe® Mobile.


  • Barcode scanning and manual time entry
  • Automatic coupling recognition Fusamatic / Plasson
  • Fitting size range 16-200mm Ø
  • 4m output lead
  • Standard 4.0mm terminal
  • Data recording of 2,000 welds
  • CalderSafe® Weld Data Analyser
  • Simple symbolic display
  • Terminal adapters supplied


  • Control Point – Blue Box Data Technology
  • CalderSafe® Mobile Weld Analyser
  • Dual sized output terminals
Coupling Size Range16-200mm Ø
Dimensions [HxWxL]275 x 215 x 385mm
Case MaterialABS Plastic
Mains Input Cable Length3m
Fusion Output Cable Length3m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current16A (110v) / 8A (230v)
Input Power3450VA
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]30A
Environmental ProtectionIP54
Data Recording Capacity2000 Records
CodeDescriptionQTYReview Quote

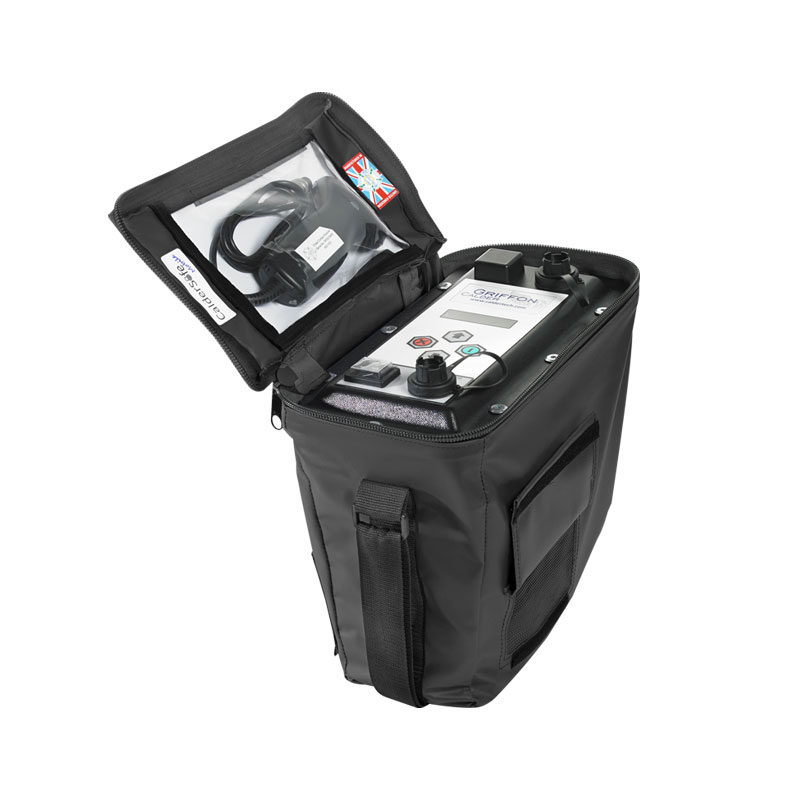

01-01-480110v Griffon, with barcode scanner, carry bag
Add to quoteAdding...
01-01-481230v Griffon, with barcode scanner, carry bag
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
  • Option F : Fusamatic output lead
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
