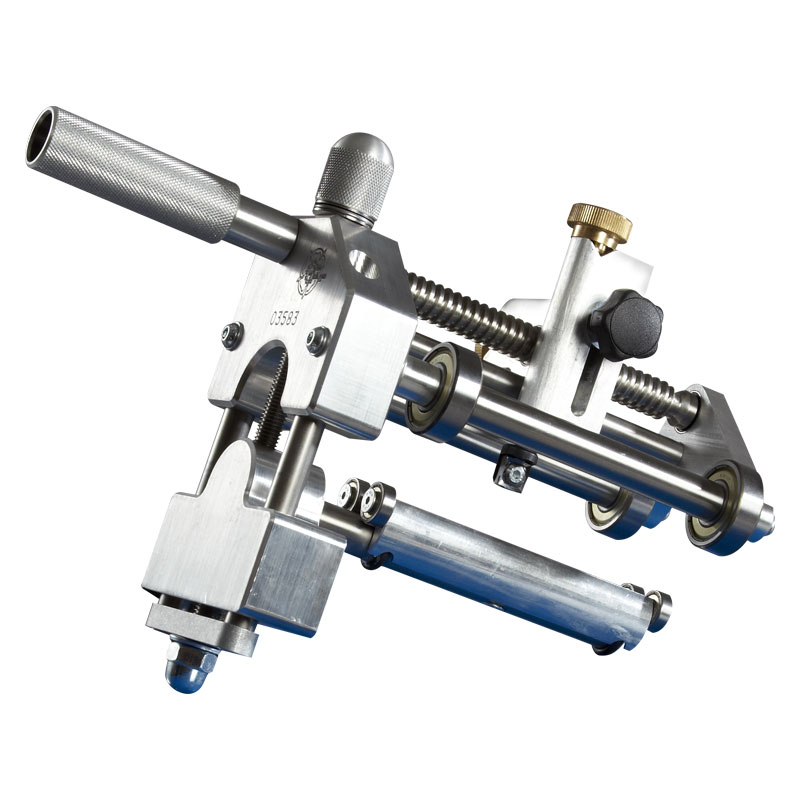

Uniprep™ 4 Rotary Scraping Tool


The Uniprep 4 is a scraping tool for all SDR rated pipe between 63-250mm. The tool features a 4 edge tungsten scraping tip and lightweight die-cast aluminum body construction.

It’s easy to use, with a spring loaded scraping tip to accommodate irregular shaped pipe and excellent performance characteristics.


  • Perfect for pipe sizes 63-250mm
  • 4 sided tungsten scraping tip
  • Lightweight die-cast aluminum body
  • Spring loaded tip for irregular shaped pipe
  • Suitable for all SDR rated pipe
  • 130mm scrape length
  • 0.25mm ± 0.05mm cut depth
Coupling Size Range63-250mm Ø / 2"-10" IPS Ø
Dimensions [HxWxL]290 x 160 x 360mm
MaterialsStainless Steel, Aluminum
FinishNatural / Zinc passivate to mild steel
Max Scrape Length130mm
Depth of Cut0.25mm ± 0.05mm
CodeDescriptionQTYReview Quote

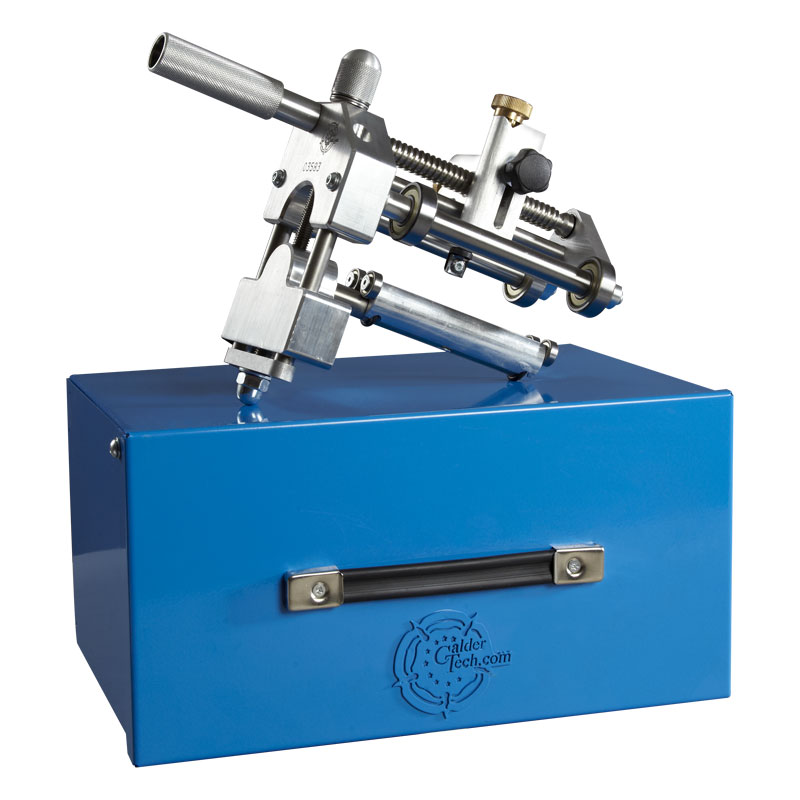

01-05-00263-250mm Ø scraping tool, with steel toolbox
Add to quoteAdding...
01-02-030Toolbox only Uniprep 4
Add to quoteAdding...
01-02-023Spare 4 sided scraping tip
Add to quoteAdding...
01-02-017Replacement tip holder
Add to quoteAdding...
  • 01-02-030 : Toolbox only Uniprep 4
  • 01-02-023 : Spare 4 sided scraping tip
  • 01-02-017 : Replacement tip holder
