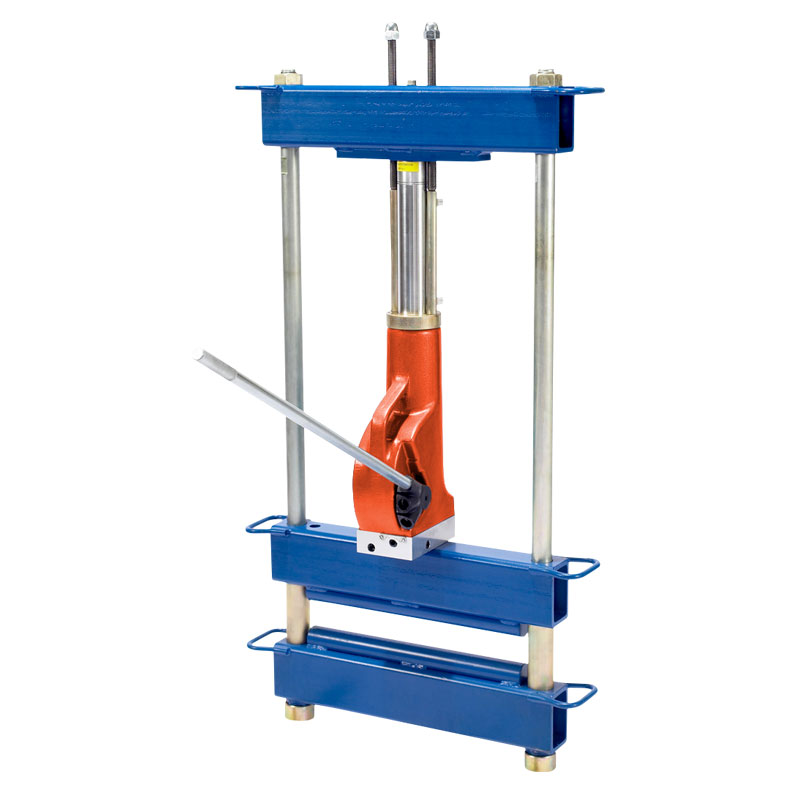

Hydraulic Dismountable Squeeze Tool 250-315mm


Description

The Hydraulic Dismountable Squeeze Tool 315mm is designed for flow control or temporary closure of large size pipes. Generating a force of 25 tonnes the hydraulic jack will close PE pipes of any standard wall thickness within the size range.

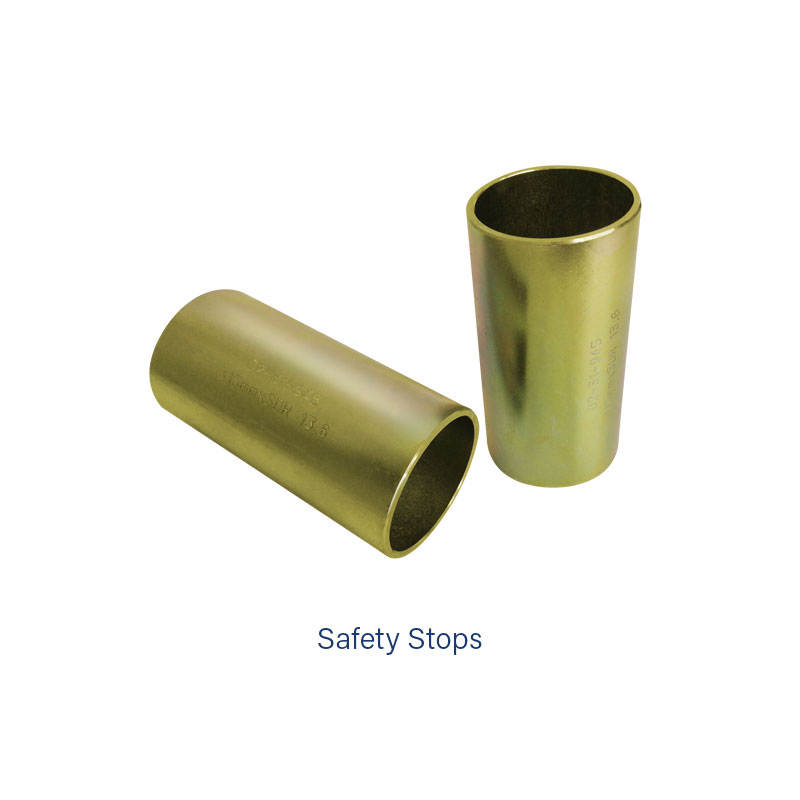

Permanent pipe damage is prevented by correct use of safety stops. When under squeeze conditions, screwing down the lock pins will prevent any loss of squeeze caused by a reduction in hydraulic pressure. Spare sets of safety stop are also available for use on a range of pipe sizes.

Features

  • Pipe range 200-315mm Ø
  • Fully dismountable for easy transportation
  • Easily assembled on pipe
  • 25 tonne lightweight jack
  • Safety stops to prevent pipe damage
  • Screw down lock pins
  • Robust construction
  • Zinc coating to steel parts
  • Designed to meet standard GIS/PL2-5



Pipe Size Range200-315mm Ø
Dimensions [HxWxL]1100 x 400 x 240mm
Weight80kk
MaterialMild steel / Aluminium
FinishPowder coating / Zinc coating to steel parts
Hydraulic Powered Jack25 tonne
CodeDescriptionQTYReview Quote
02-31-901250-315mm Ø dismountable squeeze tool, without safety stops
Add to quoteAdding...
02-31-909Jack space piece 250mm Ø and below
Add to quoteAdding...
02-31-908Jack space piece 280mm Ø and above
Add to quoteAdding...
02-31-930Safety stops 200mm Ø SDR11 (2 pcs)
Add to quoteAdding...
02-31-935Safety stops 225mm Ø SDR11 (2 pcs)
Add to quoteAdding...
02-31-902Safety stops 250mm Ø SDR11 (2 pcs)
Add to quoteAdding...
02-31-903Safety stops 280mm Ø SDR11 (2 pcs)
Add to quoteAdding...
02-31-904Safety stops 315mm Ø SDR11 (2 pcs)
Add to quoteAdding...
02-31-931Safety stops 200mm Ø SDR17 (2 pcs)
Add to quoteAdding...
02-31-936Safety stops 225mm Ø SDR17 (2 pcs)
Add to quoteAdding...
02-31-905Safety stops 250mm Ø SDR17 (2 pcs)
Add to quoteAdding...
02-31-906Safety stops 280mm Ø SDR17 (2 pcs)
Add to quoteAdding...
02-31-907Safety stops 315mm Ø SDR17 (2 pcs)
Add to quoteAdding...
02-31-932Safety stops 200mm Ø SDR17.6 (2 pcs)
Add to quoteAdding...
02-31-937Safety stops 225mm Ø SDR17.6 (2 pcs)
Add to quoteAdding...
02-31-922Safety stops 250mm Ø SDR17.6 (2 pcs)
Add to quoteAdding...
02-31-923Safety stops 280mm Ø SDR17.6 (2 pcs)
Add to quoteAdding...
02-31-924Safety stops 315mm Ø SDR17.6 (2 pcs)
Add to quoteAdding...
02-31-933Safety stops 200mm Ø SDR21 (2 pcs)
Add to quoteAdding...
02-31-938Safety stops 225mm Ø SDR21 (2 pcs)
Add to quoteAdding...
02-31-919Safety stops 250mm Ø SDR21 (2 pcs)
Add to quoteAdding...
02-31-920Safety stops 280mm Ø SDR21 (2 pcs)
Add to quoteAdding...
02-31-921Safety stops 315mm Ø SDR21 (2 pcs)
Add to quoteAdding...
  • 02-31-930 : Safety stops 200mm Ø SDR11 (2 pcs)
  • 02-31-935 : Safety stops 225mm Ø SDR11 (2 pcs)
  • 02-31-902 : Safety stops 250mm Ø SDR11 (2 pcs)
  • 02-31-903 : Safety stops 280mm Ø SDR11 (2 pcs)
  • 02-31-904 : Safety stops 315mm Ø SDR11 (2 pcs)
  • 02-31-931 : Safety stops 200mm Ø SDR17 (2 pcs)
  • 02-31-936 : Safety stops 225mm Ø SDR17 (2 pcs)
  • 02-31-905 : Safety stops 250mm Ø SDR17 (2 pcs)
  • 02-31-906 : Safety stops 280mm Ø SDR17 (2 pcs)
  • 02-31-907 : Safety stops 315mm Ø SDR17 (2 pcs)
  • 02-31-932 : Safety stops 200mm Ø SDR17.6 (2 pcs)
  • 02-31-937 : Safety stops 225mm Ø SDR17.6 (2 pcs)
  • 02-31-922 : Safety stops 250mm Ø SDR17.6 (2 pcs)
  • 02-31-923 : Safety stops 280mm Ø SDR17.6 (2 pcs)
  • 02-31-924 : Safety stops 315mm Ø SDR17.6 (2 pcs)
  • 02-31-933 : Safety stops 200mm Ø SDR21 (2 pcs)
  • 02-31-938 : Safety stops 225mm Ø SDR21 (2 pcs)
  • 02-31-919 : Safety stops 250mm Ø SDR21 (2 pcs)
  • 02-31-920 : Safety stops 280mm Ø SDR21 (2 pcs)
  • 02-31-921 : Safety stops 315mm Ø SDR21 (2 pcs)

Other safety stops available upon request.
