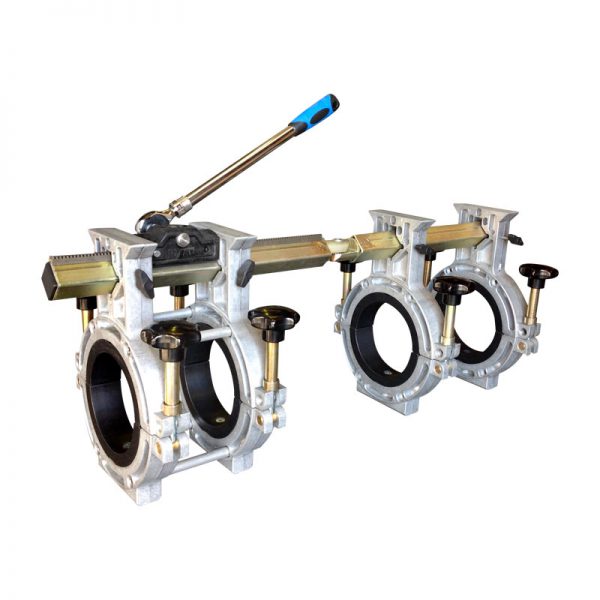

Pull Together Clamp 200


Description

The Caldertech Pull Together Clamp will hold HDPE pipe securely during the weld process while also providing excellent re-rounding capabilities. Featuring a pull together mechanism capable of pulling up to 12m lengths of pipe into position, robust construction, straight and angled connection, the Pull Together Clamp is easy to use and perfect for all your 63-200mm pipe clamping needs.

Features

  • Pipe range 63-200mm Ø
  • Quick to install and easy to use
  • Capable of pulling 12m lengths of pipe in position
  • Lightweight die cast aluminium
  • Injection moulded ABS reducing liner shells
  • Available in 2 or 3 way configuration
  • Available with straight or angle maker base
  • Provides re-rounding capabilities
Pipe Size Range63-200mm Ø
CodeDescriptionQTYReview Quote
01-15-50263-200mm Ø clamp, without reducing shells
Add to quoteAdding...
  • 01-15-130 : 200-63mm Ø reducing shell set (4 pcs)
  • 01-15-133 : 200-75mm Ø reducing shell set (4 pcs)
  • 01-15-131 : 200-110mm Ø reducing shell set (4 pcs)
  • 01-15-132 : 200-160mm Ø reducing shell set (4 pcs)
  • 01-15-110 : 200-180mm Ø reducing shell set (4 pcs)

Reducing shells available in 2, 4 and 6 piece sets.
