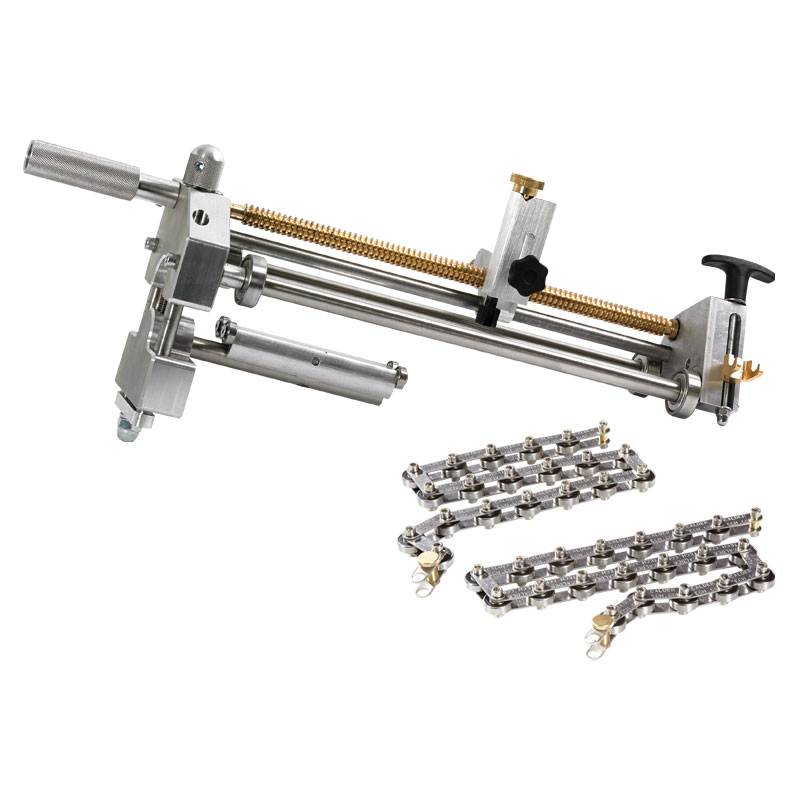

Uniprep™ 4XL Rotary Scraping Tool


The Uniprep 4XL features an extended scraping length for all SDR rated pipe between 63-315mm. Using a stability chain, this is ideal for preparing a longer surface area of PE pipe for slip coupling installations.


  • Perfect for pipe sizes 63-315mm
  • Extended scraping length ideal for slip coupler installations
  • CNC machine aluminum body
  • Spring loaded cutting tip for irregular shaped pipe
  • Suitable for all SDR rated pipe
  • 340mm scrape length
  • 0.25mm ± 0.05mm cut depth
Coupling Size Range63-315mm Ø / 2"-12" IPS Ø
Dimensions [HxWxL]225 x 175 x 560mm
MaterialsStainless Steel, Aluminum
FinishNatural / Zinc passivate to mild steel
Max Scrape Length165mm
Depth of Cut0.25mm ± 0.05mm
CodeDescriptionQTYReview Quote

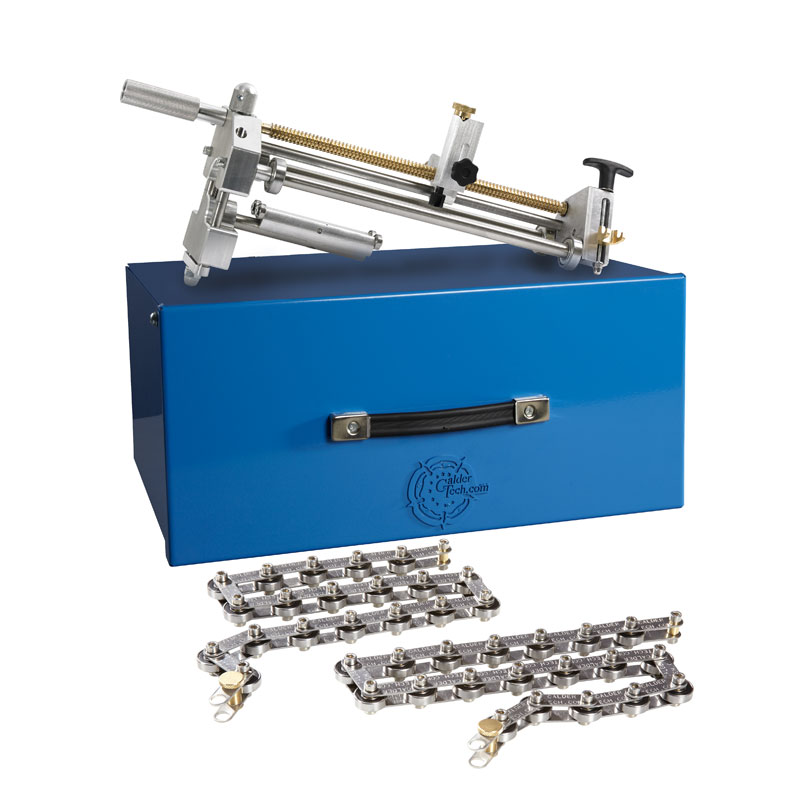

01-05-01063-315mm Ø scraper, with toolbox and chains
Add to quoteAdding...
01-07-043Spare single point scraping tip
Add to quoteAdding...
01-18-008Spare short chain 300mm
Add to quoteAdding...
01-18-009Spare long chain 630mm
Add to quoteAdding...
  • 01-07-043 : Spare single point scraping tip
  • 01-18-008 : Spare short chain 300mm
  • 01-18-009 : Spare long chain 630mm
