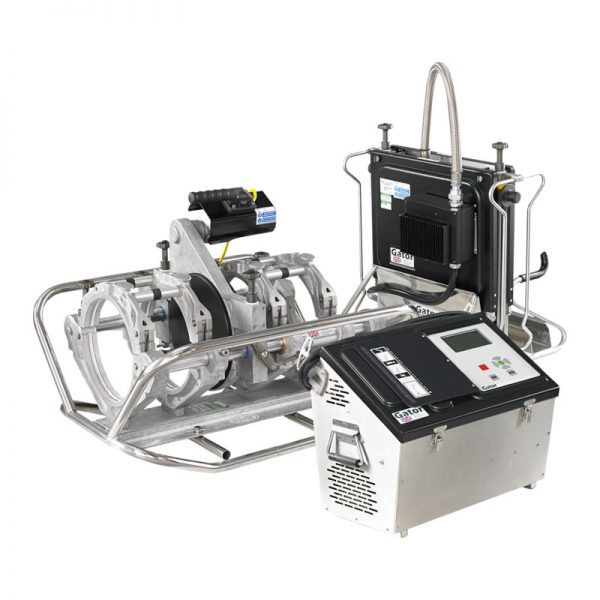

Gator 2 Automatic BF Welder


Description

Globally recognised as the market leader in butt jointing equipment, the Gator 2 manufactured by our sister company Fusion Equipment, is one of the most efficient, robust and reliable machines in the world, providing 100% successful joints time after time.

A truly automatic machine, the Gator 2 leaves nothing to chance and ensures quality jointing from the first joint of the day to the last.

Features

  • 21 internationally approved butt welding standards including ISO 21307
  • Manufactured to ISO 12176 part 3 and part 4 compliant
  • Fully automatic parameters
  • Electronic trim stops protect against over trimming

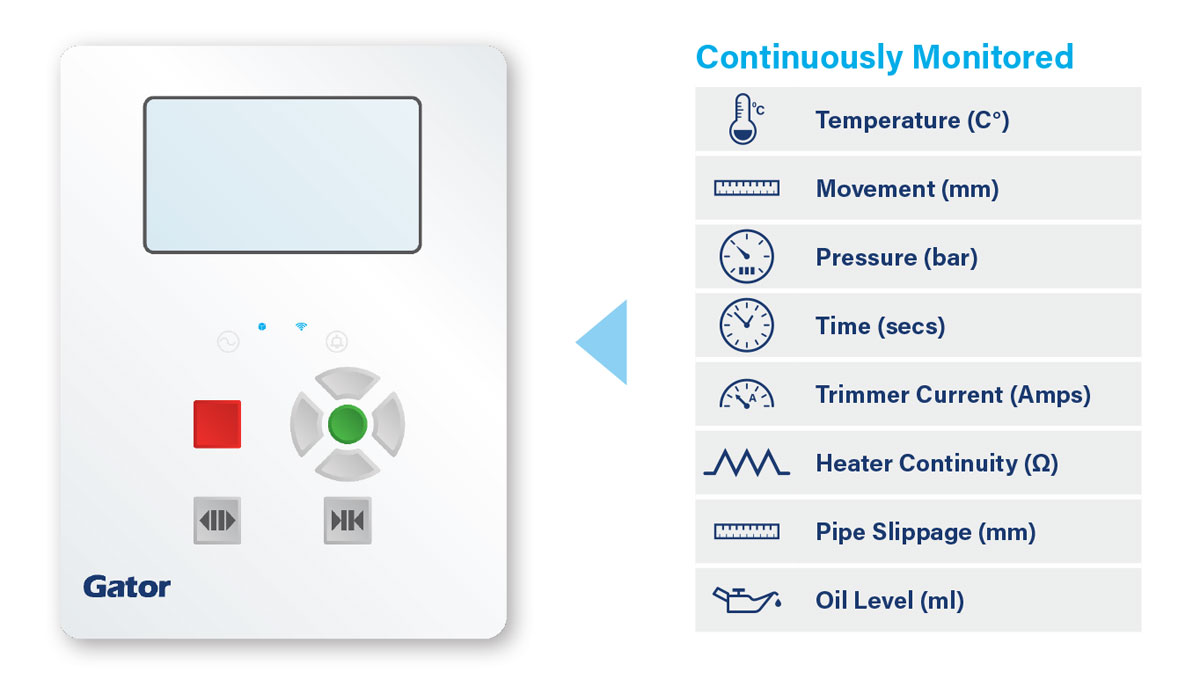

  • Large backlit display with simple user multilingual interface
  • Fast clamp system to improve productivity
  • Data recording of 2,000 weld records
  • High quality electrohydraulic pump, motor, valves and control circuit

Optional

  • Control Point – Blue Box Data Technology
  • CalderSafe® Weld Data Analyser
  • Reducing shells, bar code scanner, thermal printer




Put simply, the best fully automatic butt fusion machine in the world.


GATOR 2 180
Pipe Size Range16-315mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50-60Hz
Min. Generator Output3.5kVA

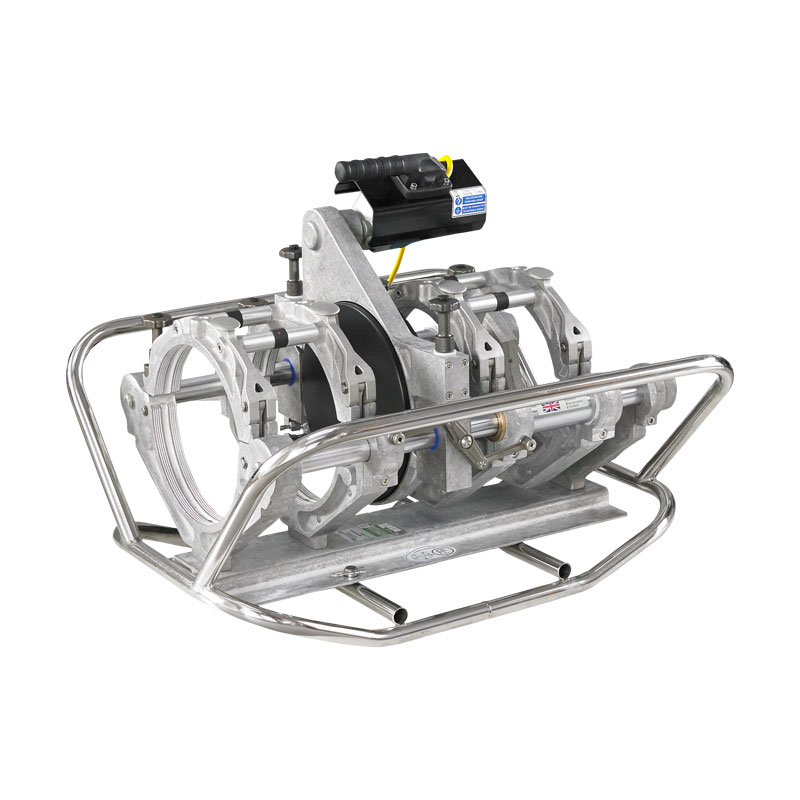

Chassis Dimensions [HxWxL]305 x 430 x 580mm

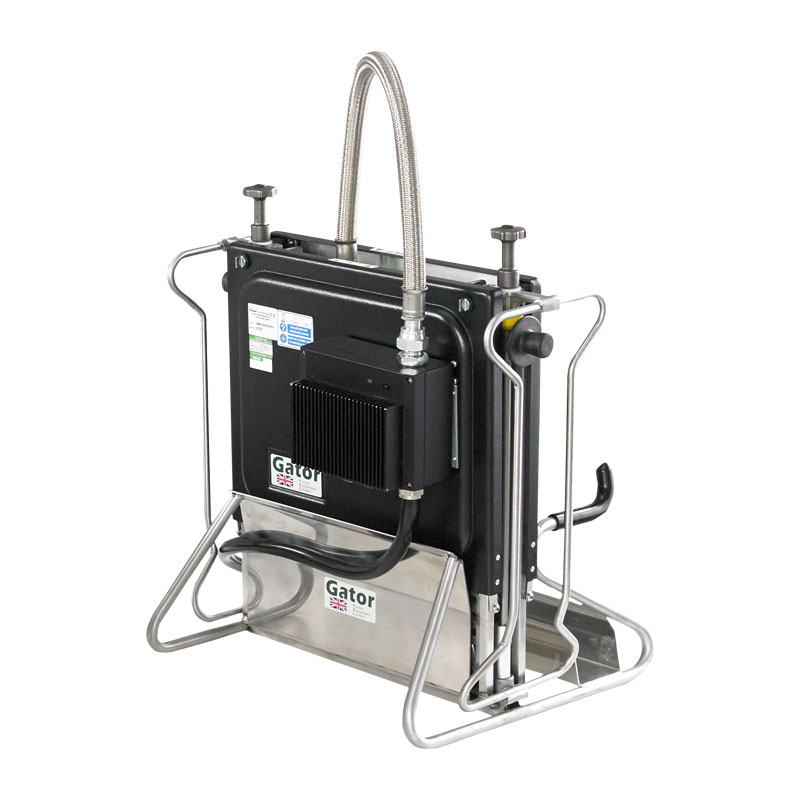

Heater Dimensions [HxWxL]740 x 255 x 485mm
Trimmer Dimensions [HxWxL]435 x 380 x 300mm

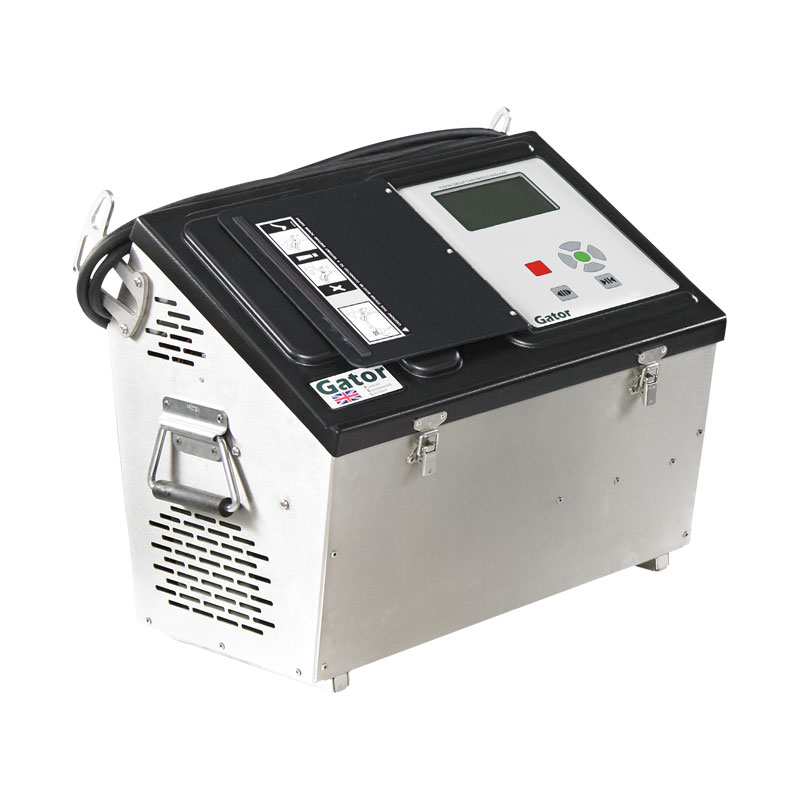

Controller Dimensions [HxWxL]500 x 540 x 445mm
Total Weight122kg
GATOR 2 250
Pipe Size Range63-250mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50-60Hz
Min. Generator Output4kVA
Chassis Dimensions [HxWxL]370 x 510 x 675mm
Heater Dimensions [HxWxL]780 x 255 x 530mm
Trimmer Dimensions [HxWxL]490 x 455 x 300mm
Controller Dimensions [HxWxL]500 x 540 x 445mm
Total Weight139kg
GATOR 2 315
Pipe Size Range90-315mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50-60Hz
Min. Generator Output6kVA
Chassis Dimensions [HxWxL]465 x 630 x 695mm
Heater Dimensions [HxWxL]890 x 255 x 630mm
Trimmer Dimensions [HxWxL]560 x 555 x 300mm
Controller Dimensions [HxWxL]500 x 540 x 445mm
Total Weight171kg
GATOR 2 400
Pipe Size Range200-400mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50-60Hz
Min. Generator Output6.5kVA
Chassis Dimensions [HxWxL]580 x 710 x 715mm
Heater Dimensions [HxWxL]1160 x 255 x 690mm
Trimmer Dimensions [HxWxL]695 x 405 x 618mm
Controller Dimensions [HxWxL]500 x 540 x 445mm
Total Weight214kg
CodeDescriptionQTYReview Quote
G180110AFEGator 180mm Ø 110v, with 3 pin plug
Add to quoteAdding...
G180220AFGGator 180mm Ø 220v, with 2 pin plug
Add to quoteAdding...
G180220AFEGator 180mm Ø 220v, with 3 pin plug
Add to quoteAdding...
G250110AFEGator 250mm Ø 110v, with 3 pin plug
Add to quoteAdding...
G250220AFGGator 250mm Ø 220v, with 2 pin plug
Add to quoteAdding...
G250220AFEGator 250mm Ø 220v, with 3 pin plug
Add to quoteAdding...
G315110AFEGator 315mm Ø 110v, with 3 pin plug
Add to quoteAdding...
G315220AFGGator 315mm Ø 220v, with 2 pin plug
Add to quoteAdding...
G315220AFEGator 315mm Ø 220v, with 3 pin plug
Add to quoteAdding...
G400110AFE-2G400110AFE-2
Add to quoteAdding...
G400220AFG-2G400220AFG-2
Add to quoteAdding...
G400220AFE-2G400220AFE-2
Add to quoteAdding...
35886Spare blade for Gator 180mm Ø trimmer
Add to quoteAdding...
34292Spare blade for Gator 250mm Ø trimmer
Add to quoteAdding...
22568Spare blade for Gator 315mm Ø trimmer
Add to quoteAdding...
23121Spare blade for Gator 400mm Ø trimmer
Add to quoteAdding...
704504Barcode scanner
Add to quoteAdding...
705892Advanced thermal data printer
Add to quoteAdding...
  • Control Point – Blue Box Data Technology
  • CalderSafe® Weld Data Analyser
  • Gator 2 Reducing Shells
  • 704504 : Barcode scanner
  • 705892 : Gator 2 Thermal Data Printer
