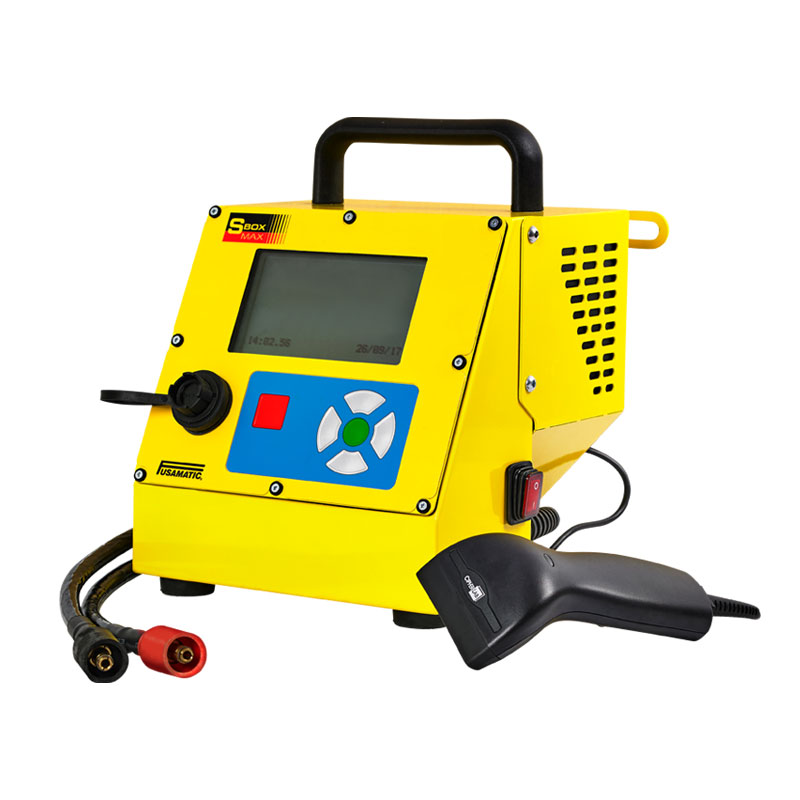

SBOX Max EF Welder


The SBOX Max Electrofusion Welder gives you functionality, reliability and is capable of welding any brand of electrofusion fittings for gas, water and other pressure pipe applications up to 630mm, and uses Fusamatic, barcode and manual entry for the input of fusion data.


  • Barcode scanning and manual time entry
  • Automatic coupling recognition Fusamatic / Plasson
  • Fitting size range 20-630mm Ø
  • Up to 100,000 joint records on internal SD card
  • Standard 4.0mm terminal
  • Data recording of 2,000 welds
  • Scratch resistant polycarbonate display
  • Multiple language options available


  • Control Point – Blue Box Data Technology
  • CalderSafe® Mobile Weld Analyser
Coupling Size Range20-630mm Ø
Dimensions [HxWxL]430 x 300 x 290mm
Case MaterialCoated Steel
Mains Input Cable Length3m
Fusion Output Cable Length2.5m
Input Voltage230v
Power Consumption40-60Hz
Max. Input Current16A
Input Power3kW
Output Voltage [Vac RMS]10-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP54
Data Recording Capacity2000 Records
CodeDescriptionQTYReview Quote
Add to quoteAdding...
SBOXMAXBC240v SBOX Max, with barcode scanner
Add to quoteAdding...
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
