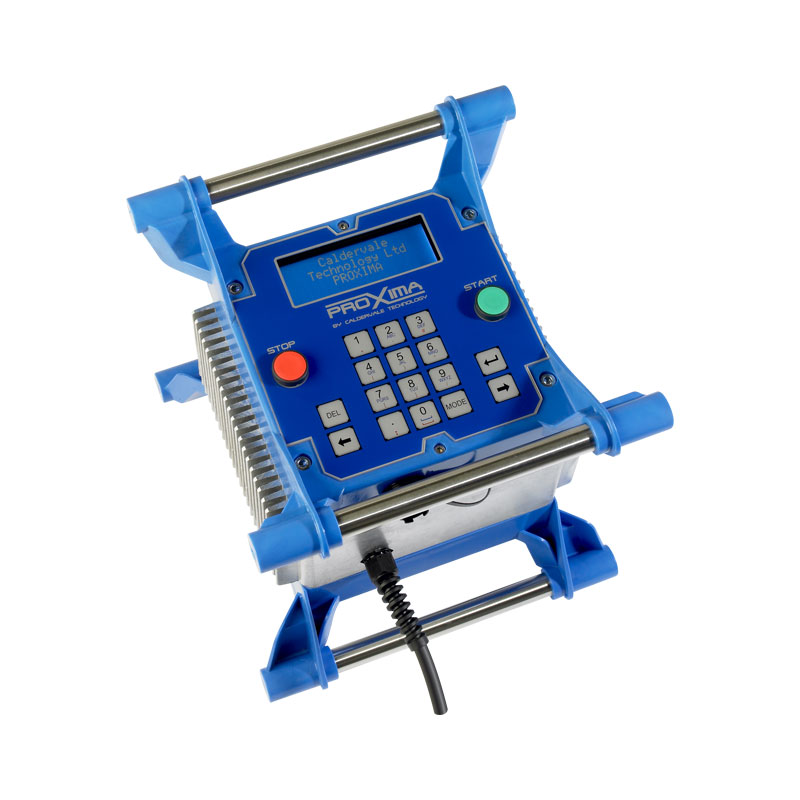

Calder Proxima EF Welder


Description

The Calder Proxima Electrofusion welder is packed with all the capabilities required for any gas and water project installing HDPE fittings up to 1000mm. With three welding modes Fusamatic, barcode and manual, there’s no limit to the brand of fittings you use.

Features

  • Barcode scanning and manual time entry
  • Automatic coupling recognition Fusamatic / Plasson
  • Fitting size range 20-1000mm Ø
  • Fixed or detachable output lead
  • Voltage sensing technology
  • Standard 4.0mm terminals
  • Data recording up to 702 weld records
  • 4 x 20 large character display
  • Multiple language options available

Optional

  • Point of weld recordable GPS location
  • CalderSafe® Mobile Weld Analyser
Coupling Size Range20-1000mm Ø
Dimensions [HxWxL]360 x 330 x 350mm
Weight26kg
Case MaterialABS / Aluminium
Mains Input Cable Length5m
Fusion Output Cable Length4m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current30A (110v) / 16A (230v)
Input Power3kW
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP54
Data Recording Capacity702 Records
CodeDescriptionQTYReview Quote
01-01-060110v Proxima Sirius (manual input only)
Add to quoteAdding...
01-01-061230v Proxima Sirius (manual input only)
Add to quoteAdding...
01-01-074110v Proxima Centaur, with barcode scanner
Add to quoteAdding...
01-01-075230v Proxima Centaur, with barcode scanner
Add to quoteAdding...
01-01-063110v Proxima Taurus, 40/80v 2 x detachable output leads
Add to quoteAdding...
01-01-162Steel case
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
  • 01-01-162 : Steel case
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
