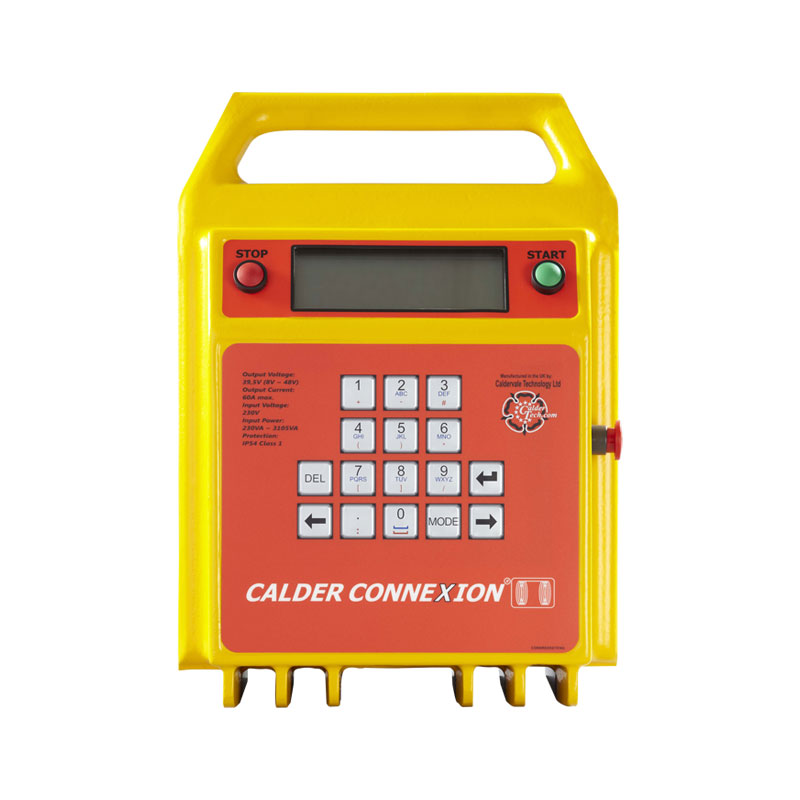

Calder Connexion® Red EF Welder


The Calder Connexion Red welder is a powerful and reliable machine capable of welding all brands of fittings up to 630mm.
It features data recording and offers automatic fitting recognition, barcode scanning and manual data entry.


  • Barcode scanning and manual time entry
  • Automatic coupling recognition Fusamatic / Plasson
  • Fitting size range 20-630mm Ø
  • Fixed or detachable output lead
  • Voltage sensing technology
  • Standard 4.0mm terminal
  • Data recording of 702 welds
  • 4 x 20 large character display
  • Multiple language options available


  • Steel tool case
Coupling Size Range20-630mm Ø
Dimensions [HxWxL]380 x 280 x 250mm
Case MaterialCast Aluminium
Mains Input Cable Length5m
Fusion Output Cable Length4m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current30A (110v) / 16A (230v)
Input Power3kW
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP54
Data Recording Capacity702 Records
CodeDescriptionQTYReview Quote
01-01-501110v Connexion Red, with barcode scanner
Add to quoteAdding...
01-01-502230v Connexion Red, with barcode scanner
Add to quoteAdding...
01-01-155Steel case
Add to quoteAdding...
  • 01-01-155 : Steel case
