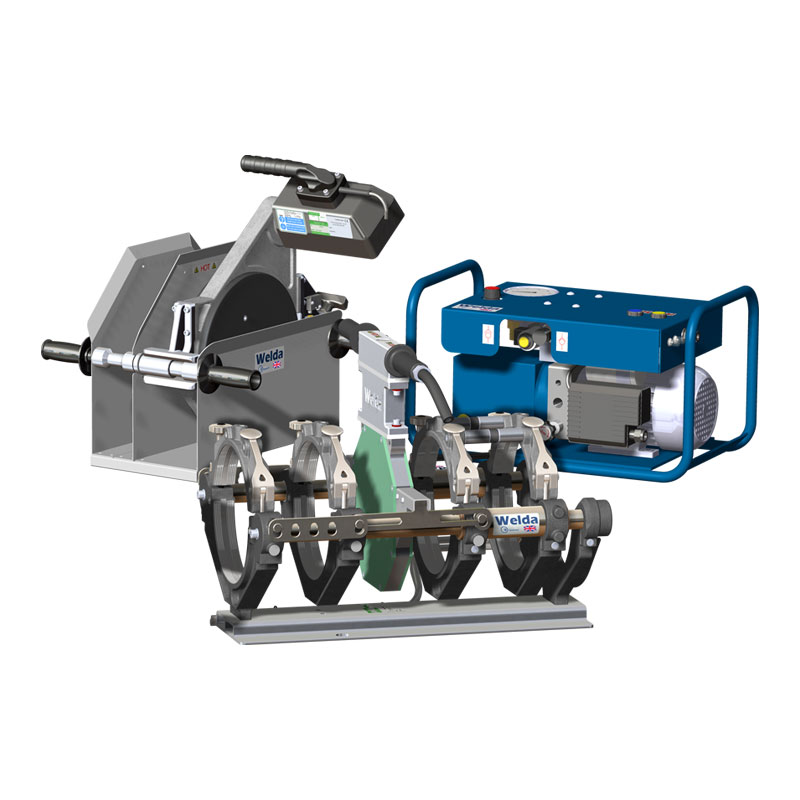

Welda 2 BF Welder


Description

UK manufactured by Fusion Equipment, the Welda 2 range of semi-automatic butt fusion machines are robust, powerful and packed with quality and safety features to join pipes up to 400mm.

Featuring a fast clamping mechanism, electronically regulated heater temperature, replaceable heater surface plates and a compact design, these machines make the fusion process easy and guarantee performance every time.

Features

  • Pipe size range 63-400mm Ø
  • Fast clamping
  • Lightweight compact machine
  • Toolless repositionable 3rd clamp
  • Heater pull off mechanism
  • Large easy to read pressure gauge
  • 150 bar operating system
  • Trimmer safety switch
  • Electronically regulated heater temperature
  • Replaceable heater surface plates

Optional

  • Reducing shells
  • Stub flange adapter
  • Bevel shells for short spigot fitting




Robust, powerful and packed with quality and safety features.


WELDA 2 180
Pipe Size Range63-180mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50Hz
Input Current30A (110v) / 15A (220v)
Input Power3.35kW
Max. Working Pressure150 bar
Min. Generator Output5kVA

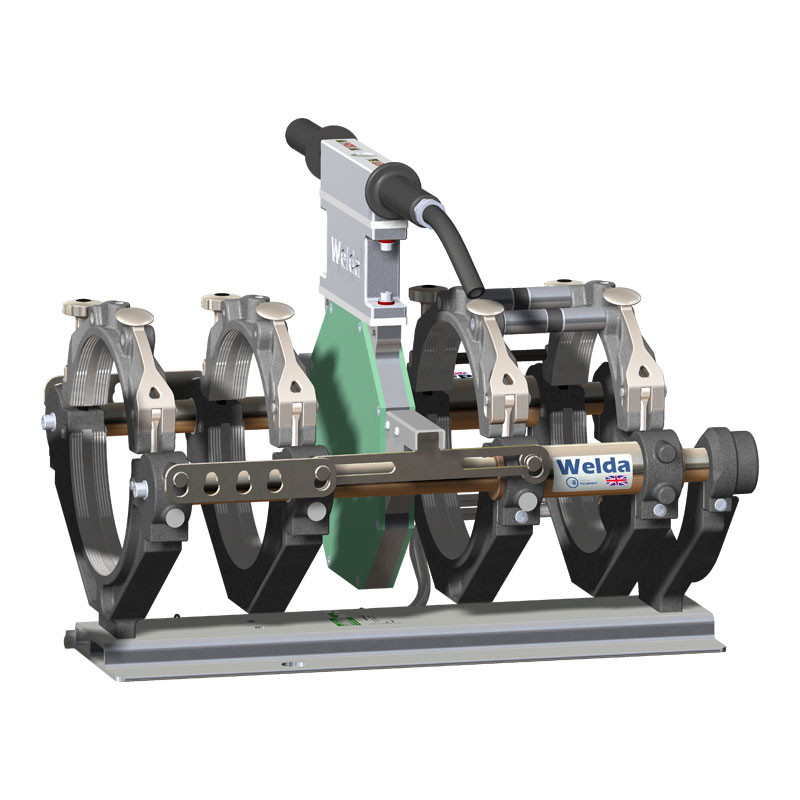

Chassis Dimensions [HxWxL]310 x 402 x 655mm
Heater Dimensions [HxWxL]339 x 40 x 465mm

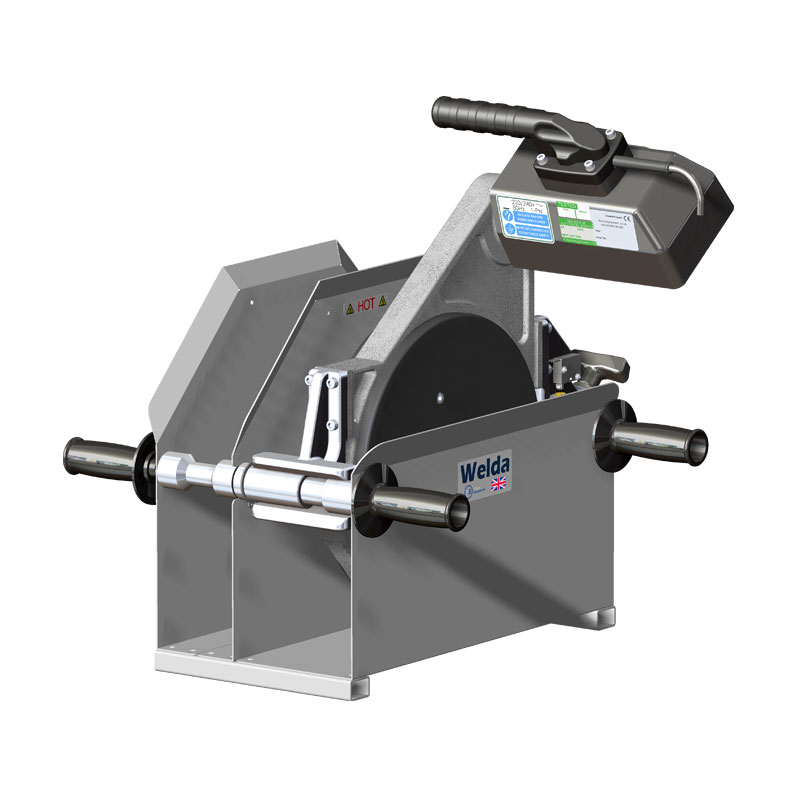

Trimmer Dimensions [HxWxL]428 x 280 x 260mm

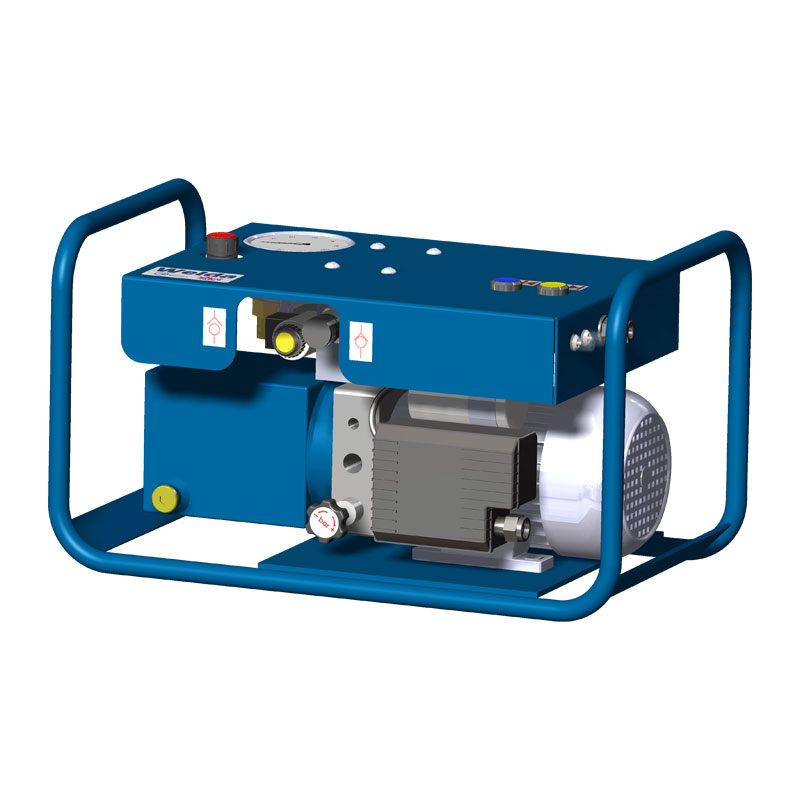

Hydraulic Unit [HxWxL]330 x 330 x 540mm
Heater Stand [HxWxL]325 x 380 x 500mm
Total Weight99.5kg
WELDA 2 250
Pipe Size Range63-250mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50Hz
Input Current32A (110v) / 16A (220v)
Input Power3.65kW
Max. Working Pressure150 bar
Min. Generator Output5kVA
Chassis Dimensions [HxWxL]395 x 510 x 680mm
Heater Dimensions [HxWxL]450 x 40 x 470mm
Trimmer Dimensions [HxWxL]530 x 280 x 480mm
Hydraulic Unit [HxWxL]330 x 330 x 540mm
Heater Stand [HxWxL]360 x 450 x 500mm
Total Weight111kg
GATOR 2 315
Pipe Size Range90-315mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50Hz
Input Current46A (110v) / 23A (220v)
Input Power5.15kW
Max. Working Pressure150 bar
Min. Generator Output7kVA
Chassis Dimensions [HxWxL]465 x 595 x 695mm
Heater Dimensions [HxWxL]70 x 522 x 500mm
Trimmer Dimensions [HxWxL]540 x 280 x 610mm
Hydraulic Unit [HxWxL]330 x 330 x 540mm
Heater Stand [HxWxL]425 x 500 x 515mm
Total Weight138.7kg
GATOR 2 400
Pipe Size Range200-400mm Ø
Nominal Input Voltage110v / 230v
Input Frequency50Hz
Input Current57A (110v) / 28A (220v)
Input Power6.25kW
Max. Working Pressure150 bar
Min. Generator Output8kVA
Chassis Dimensions [HxWxL]580 x 710 x 715mm
Heater Dimensions [HxWxL]750 x 40 x 650mm
Trimmer Dimensions [HxWxL]695 x 405 x 618mm
Hydraulic Unit [HxWxL]330 x 330 x 540mm
Heater Stand [HxWxL]510 x 520 x 600mm
Total Weight178kg
CodeDescriptionQTYReview Quote
W180110MFE-2Welda 2 180mm Ø 110v, with 3 pin plug
Add to quoteAdding...
W180220MFG-2Welda 2 180mm Ø 220v, with 2 pin plug
Add to quoteAdding...
W180220MFE-2Welda 2 180mm Ø 220v, with 3 pin plug
Add to quoteAdding...
W250110MFE-2Welda 2 250mm Ø 110v, with 3 pin plug
Add to quoteAdding...
W250220MFG-2Welda 2 250mm Ø 220v, with 2 pin plug
Add to quoteAdding...
W250220MFE-2Welda 2 250mm Ø 220v, with 3 pin plug
Add to quoteAdding...
W315110MFE-2Welda 2 315mm Ø 110v, with 3 pin plug
Add to quoteAdding...
W315220MFG-2Welda 2 315mm Ø 220v, with 2 pin plug
Add to quoteAdding...
W315220MFE-2Welda 2 315mm Ø 220v, with 3 pin plug
Add to quoteAdding...
W400110MFE-2Welda 2 400mm Ø 110v, with 3 pin plug
Add to quoteAdding...
W400220MFG-2Welda 2 400mm Ø 220v, with 2 pin plug
Add to quoteAdding...
W400220MFE-2Welda 2 400mm Ø 220v, with 3 pin plug
Add to quoteAdding...
  • Welda 2 Reducing Shells
  • Stub flange adapter
  • Bevel shells for short spigot fitting
