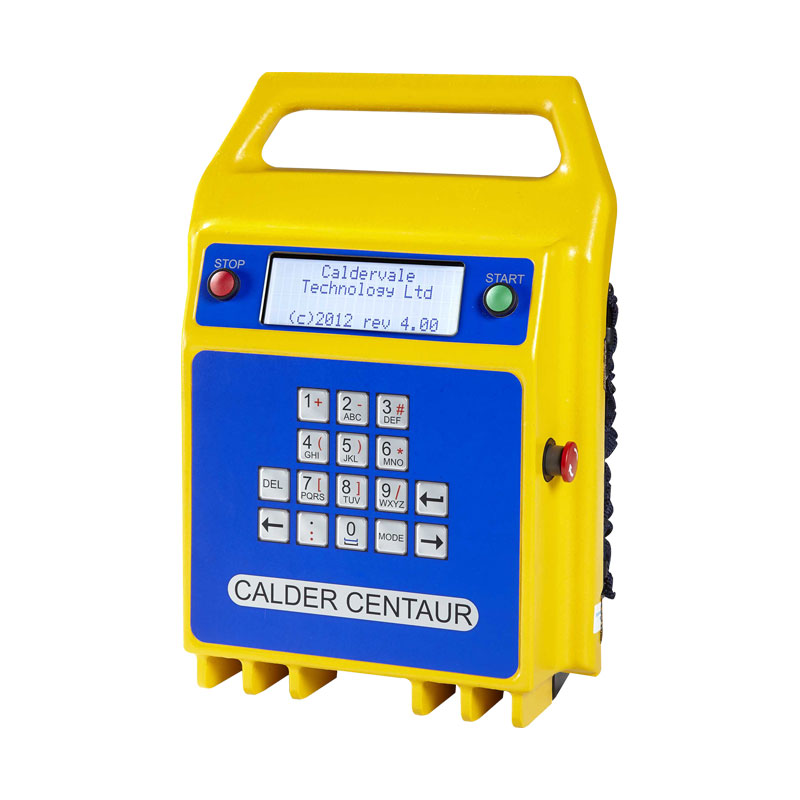

Calder Centaur EF Welder


The Calder Centaur has been designed to meet the industry’s needs with manual and barcode data entry and weld data recording. The unit is constructed of aluminium incorporated with a cable storage facility and can be fitted with GPS location as an optional feature.


  • Barcode scanning and manual time entry
  • Automatic coupling recognition Fusamatic / Plasson
  • Fitting size range 20-630mm Ø
  • Data recording up to 702 welds
  • 4 x 20 large character display
  • Choice of 4.0mm or 4.7mm terminals


  • GPS Location
  • CalderSafe® Mobile Weld Analyser
Coupling Size Range20-630mm Ø
Dimensions [HxWxL]380 x 280 x 250mm
Case MaterialCast Aluminium
Mains Input Cable Length4m
Fusion Output Cable Length3m
Input Voltage110v or 230v
Power Consumption40-60Hz
Max. Input Current30A (110v) / 16A (230v)
Input Power3kW
Output Voltage [Vac RMS]8-48v
Output Current [Continuous Aac RMS]60A
Environmental ProtectionIP54
Data Recording Capacity702 Records
CodeDescriptionQTYReview Quote
01-01-181110v Calder Centaur, with barcode scanner
Add to quoteAdding...
01-01-183230v Calder Centaur, with barcode scanner
Add to quoteAdding...
01-01-155Steel case
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
  • 01-01-155 : Steel case
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
