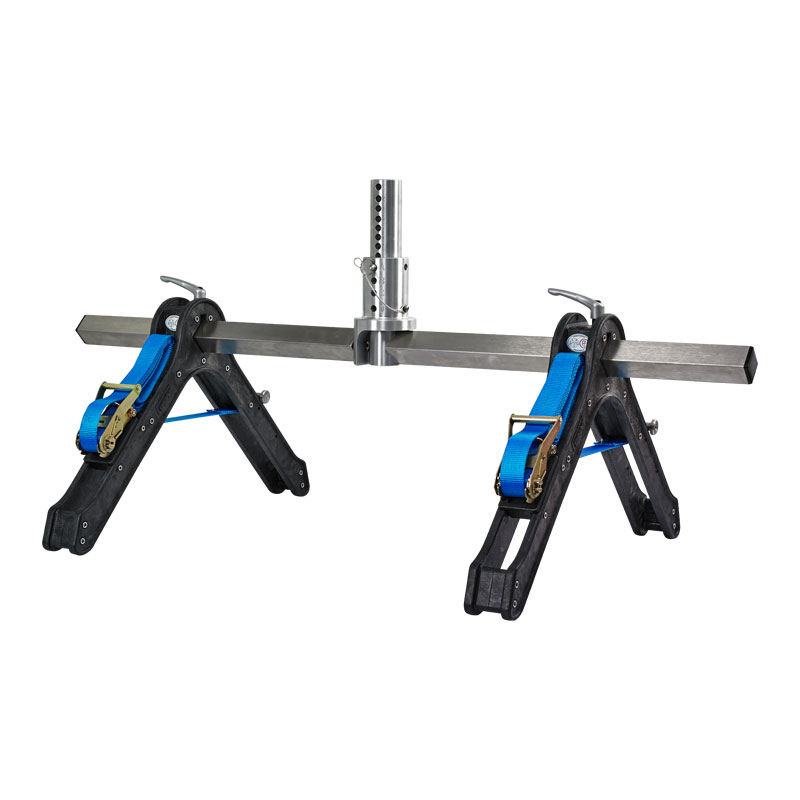

Strap Clamp 500


The Strap Clamp 500 is a lightweight, fast set up clamp that will hold HDPE pipe securely during the weld process for pipe sizes up to 500mm. Featuring a robust construction with a compact design and available in single and double clamp format.


  • Pipe range 160-500mm Ø
  • Quick to install and easy to use
  • Available in single or double clamp format (2 clamps on each side)
  • Angle maker bar for 22.5°, 45° and 90° elbows available
  • Fast acting “tug and tension” straps
  • No liners required
Pipe Size Range160-500mm Ø
CodeDescriptionQTYReview Quote
SC500160-500mm Ø clamp, straight base
Add to quoteAdding...
SC500-2-K160-500mm Ø clamp, angle maker
Add to quoteAdding...
SC500-2-K-4160-500mm Ø double clamp, angle maker
Add to quoteAdding...
SC500ADTTee branch leg adapter 40mm diamond
Add to quoteAdding...
12799160-500mm Ø additional clamp assembly
Add to quoteAdding...
  • SC500ADT : Tee branch leg adapter 40mm diamond
  • 12799 : 160-500mm Ø additional clamp assembly
