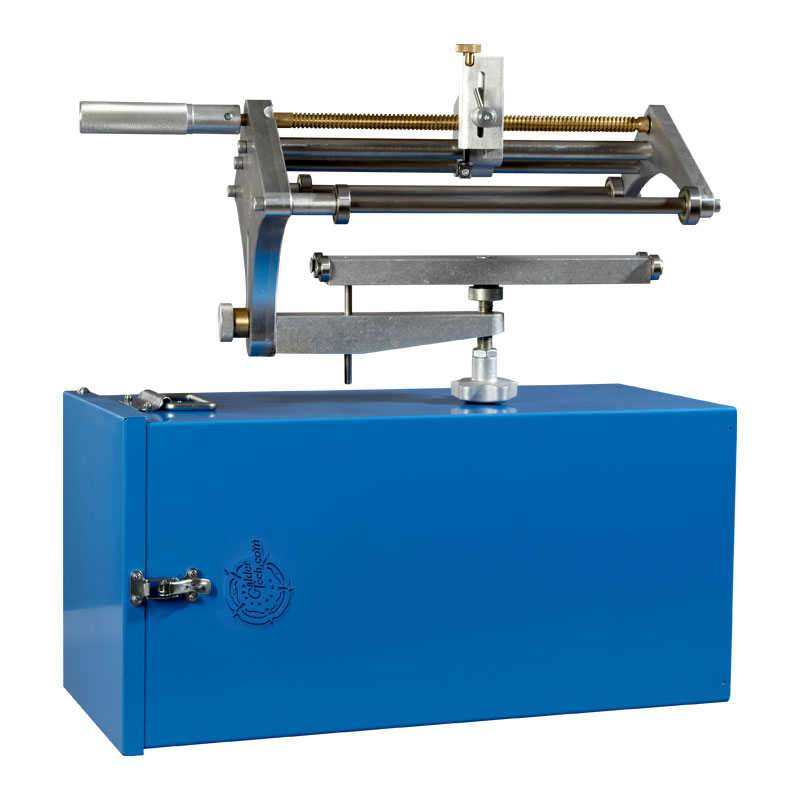

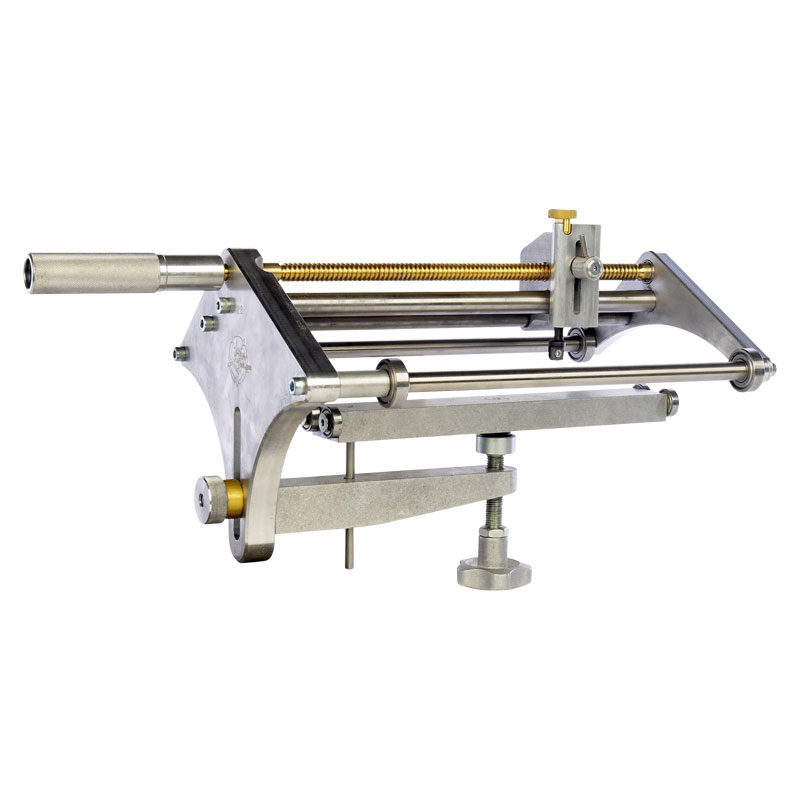

Uniprep™ 5 Rotary Scraping Tool


The Uniprep 5 rotary scraping tool is for all SDR rated pipe between 450-710mm. The tool features a 4 edge tungsten scraping tip and lightweight aluminum body construction.

It’s easy to use, with a spring loaded scraping tip to accommodate irregular shaped pipe, and has excellent performance characteristics.


  • Perfect for pipe sizes 450-710mm
  • 4 sided tungsten scraping tip
  • Lightweight aluminum body
  • Spring loaded tip for irregular shaped pipe
  • Suitable for all SDR rated pipe
  • 345mm scrape length
  • 0.25mm ± 0.05mm cut depth
Pipe Size Range450-710mm Ø / 18"-24" IPS Ø
Dimensions [HxWxL]340 x 300 x 600mm
MaterialsStainless Steel, Aluminum
FinishNatural / Zinc passivate to mild steel
Max Scrape Length345mm
Depth of Cut0.25mm ± 0.05mm
CodeDescriptionQTYReview Quote
01-06-001450-710mm Ø scraping tool, with toolbox
Add to quoteAdding...
01-02-033Toolbox only Uniprep 5
Add to quoteAdding...
01-02-023Spare 4 sided scraping tip
Add to quoteAdding...
01-02-017Replacement tip holder
Add to quoteAdding...
  • 01-02-033  :  Toolbox only Uniprep 5
  • 01-02-023  :  Spare 4 sided scraping tip
  • 01-02-017  :  Replacement tip holder
