Caldertech Rhino

Description

The Caldertech Rhino gives you functionality, reliability and affordability, capable of welding all conventional brands of fittings as well as specialist projects in the most challenging environments.

Features

  • Barcode scanning and manual time entry
  • Fitting size range 20-1400mm Ø
  • 4m output lead
  • Data recording of 2,000 welds
  • CalderSafe® Weld Data Analyser
  • Alphanumeric display with backlight
  • Terminal adapters supplied

Optional

  • CalderSafe® Mobile Weld Analyser
  • Dual sized output terminals
Coupling Size Range20-1400mm Ø
Dimensions [HxWxL]385 x 275 x 215mm
Weight50kg
Input Voltage230V Build / 195-270Vac
Input Voltage50Hz (37-62Hz)
Input Frequency94VA–7.4kVA @ Nominal 48V output
Efficiency90% @ Nominal 85V output
Efficiency51% @ Nominal 48V output
Efficiency42% @ Nominal 40V output
Output Voltage [Vac RMS]8-85v
Output Current [Continuous Aac RMS]80A
Stability+/- 1.5% of Welding Voltage
Output Power85W-6.6kW @ Nominal 85V output
Output Power48W-3.8kW @ Nominal 48V output
Output Power40W-3.2kW @ Nominal 40V output
Welding Time Span3-4000 seconds
Operating Temperature-20°C-50°C
Environmental ProtectionIP54 Class II
Data DownloadUSB flash memory
LanguagesMultiple
Data Recording Capacity2000 Records
CodeDescriptionQTYReview Quote

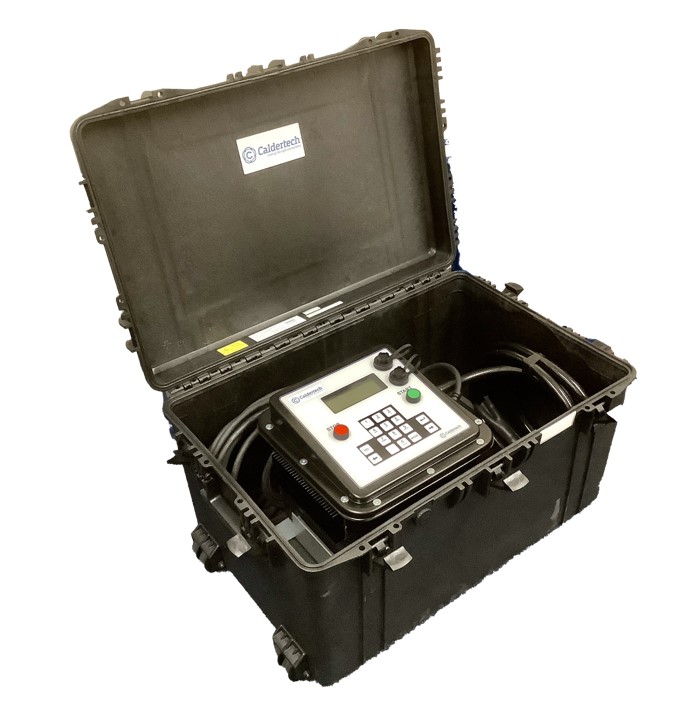

01-01-455230v Caldertech Rhino, hard case
Add to quoteAdding...
01-01-295CalderSafe® Mobile Weld Analyser
Add to quoteAdding...
  • 01-01-295 : CalderSafe® Mobile Weld Analyser
